SP20B High-speed Programmer

Update: 2022/2/21 20:24:39 View:

Brand: SFLY
Type: SP20B
Downloads：
Software User Manual(en)

Introduction

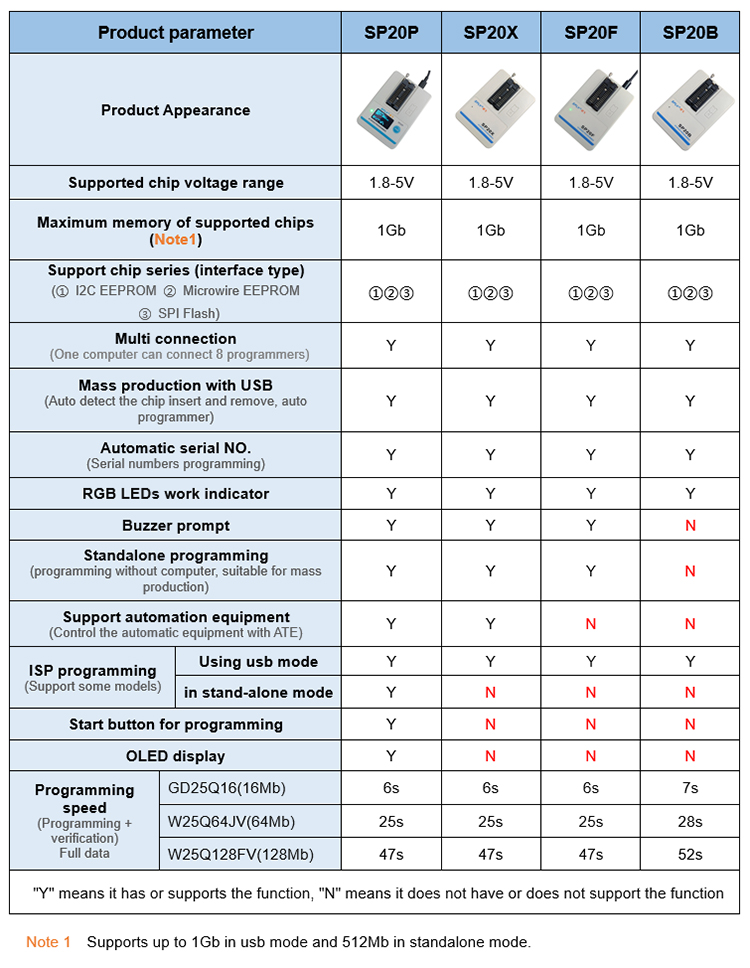

SP20 series (SP20B/SP20F/ SP20X/SP20P) programmers are the latest highspeed mass production programmers for SPI FLASH launched by Shenzhen SFLY Technology. It fully supports the high-speed programming of SPI NOR FLASH, I2C / MicroWire and other EEPROMs from domestic and foreign manufacturers.

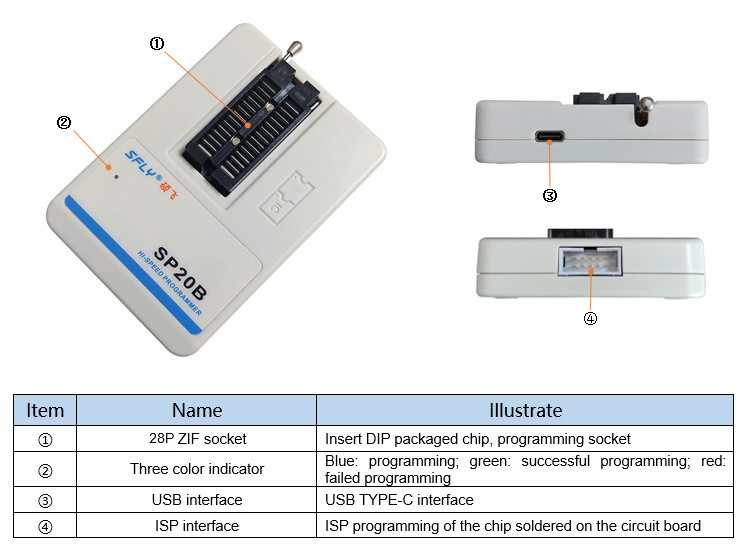

Hardware features

● USB TYPE-C communication interface, no need for external power supply when used in USB mode;
● Support USB and standalone mode high-speed mass production programming;
● Replaceable 28-pin ZIF socket, which can be supported by conventional universal programming bases;
● RGB three-color LED indicates the working status;
● Support poor pin contact detection, effectively improve programming reliability;
● Support ISP mode programming, which can support on-board programming of some chips;
● intelligent detection chip placement and removal, automatic startup programming;
● Short circuit / overcurrent protection function can effectively protect the programmer or chip from accidental damage;
● Programmable voltage design, adjustable range from 1.7V to 5.0V, can support 1.8V/2.5V/3V/3.3V/5V chips;
● Provide equipment self-check function;
● Small size (size: 108x76x21mm), simultaneous programming of multiple machines only takes up a very small work surface;

Software features

● Support Win7/Win8/Win10/Win11;
● Support software upgrade to add new devices;
● Support project file management (project file saves all programming parameters, including: chip model, data file, programming settings, etc.);
● Support the reading and writing of additional storage area (OTP area) and configuration area (status register, etc.) of the chip;
● Support automatic recognition of 25 series SPI FLASH;
● Automatic serial number function (can be used to generate product unique serial number, MAC address, Bluetooth ID, etc.,);
● Support multi-programmer mode connection: one computer can be connected with 8 SP20 series programmers for simultaneous programming,The automatic serial number function is active in multi-programmer mode;
● Support log file saving;
